wrapper for DXF Block object More...

#include <gg_dxf.h>

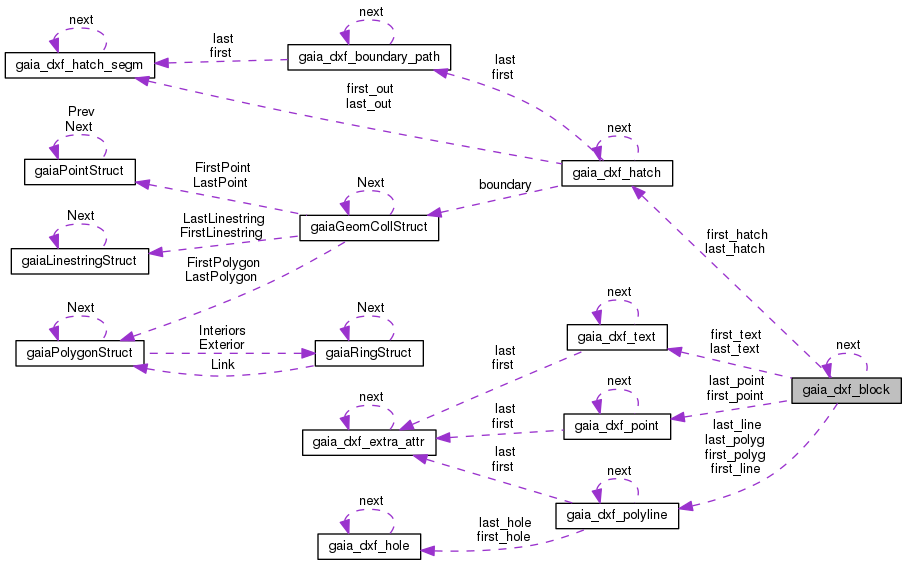

Collaboration diagram for gaia_dxf_block:

Data Fields
int	hasInsert
	Boolean flag: this block is referenced by some Insert.

char *	layer_name
	pointer to Layer Name string

char *	block_id
	pointer to Block ID string

gaiaDxfTextPtr	first_text
	pointer to first DXF Text object [linked list]

gaiaDxfTextPtr	last_text
	pointer to last DXF Text object [linked list]

gaiaDxfPointPtr	first_point
	pointer to first DXF Point object [linked list]

gaiaDxfPointPtr	last_point
	pointer to last DXF Point object [linked list]

gaiaDxfPolylinePtr	first_line
	pointer to first DXF Polyline (Linestring) object [linked list]

gaiaDxfPolylinePtr	last_line
	pointer to last DXF Polyline (Linestring) object [linked list]

gaiaDxfPolylinePtr	first_polyg
	pointer to first DXF Polyline (Polygon) object [linked list]

gaiaDxfPolylinePtr	last_polyg
	pointer to last DXF Polyline (Polygon) object [linked list]

gaiaDxfHatchPtr	first_hatch
	pointer to first DXF Hatch object [linked list]

gaiaDxfHatchPtr	last_hatch
	pointer to last DXF Hatch object [linked list]

int	is3Dtext
	boolean flag: contains 3d Text objects

int	is3Dpoint
	boolean flag: contains 3d Point objects

int	is3Dline
	boolean flag: contains 3d Polyline (Linestring) objects

int	is3Dpolyg
	boolean flag: contains 3d Polyline (Polygon) objects

struct gaia_dxf_block *	next
	pointer to next item [linked list]

Detailed Description

wrapper for DXF Block object

The documentation for this struct was generated from the following file:
