wrapper for DXF Polyline object could be a Linestring or a Polygon depending on the is_closed flag More...

#include <gg_dxf.h>

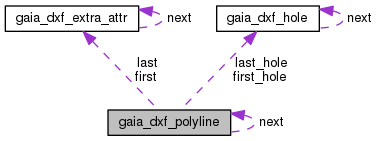

Collaboration diagram for gaia_dxf_polyline:

Data Fields
int	is_closed
	open (Linestring) or closed (Polygon exterior ring)

int	points
	total count of points

double *	x
	array of X coordinates

double *	y
	array of Y coordinates

double *	z
	array of Z coordinates

gaiaDxfHolePtr	first_hole
	pointer to first Polygon hole [linked list]

gaiaDxfHolePtr	last_hole
	pointer to last Polygon hole [linked list]

gaiaDxfExtraAttrPtr	first
	pointer to first Extra Attribute [linked list]

gaiaDxfExtraAttrPtr	last
	pointer to last Extra Attribute [linked list]

struct gaia_dxf_polyline *	next
	pointer to next item [linked list]

Detailed Description

wrapper for DXF Polyline object could be a Linestring or a Polygon depending on the is_closed flag

The documentation for this struct was generated from the following file:
