spatialite.h File Reference

Main SpatiaLite header file. More...

#include <spatialite/gaiageo.h>

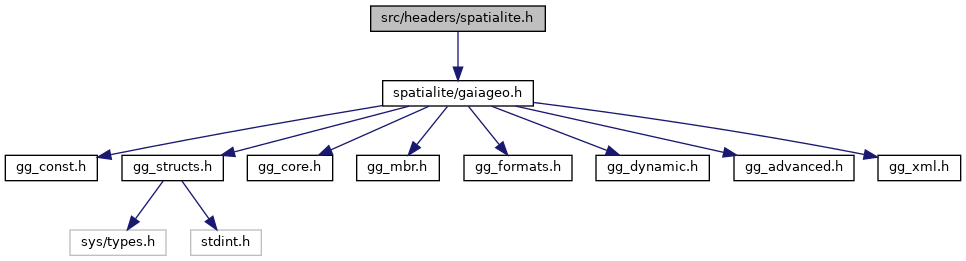

Include dependency graph for spatialite.h:

Go to the source code of this file.

Macros
#define	SPLITE_AXIS_1   0x51
#define	SPLITE_AXIS_2   0x52
#define	SPLITE_AXIS_NAME   0x3e
#define	SPLITE_AXIS_ORIENTATION   0x3f

Functions
SPATIALITE_DECLARE void	spatialite_initialize (void)
	Initializes the library. More...
SPATIALITE_DECLARE void	spatialite_shutdown (void)
	Finalizes the library. More...
SPATIALITE_DECLARE const char *	spatialite_version (void)
	Return the current library version. More...
SPATIALITE_DECLARE const char *	spatialite_target_cpu (void)
	Return the target CPU name. More...
SPATIALITE_DECLARE void *	spatialite_alloc_connection (void)
	Initializes the internal memory block supporting each connection. More...
SPATIALITE_DECLARE void	spatialite_set_silent_mode (const void *ptr)
	Disables reporting GEOS/RTTOPO error and warnings on stderr. More...
SPATIALITE_DECLARE void	spatialite_set_verbode_mode (const void *ptr)
	Enables reporting GEOS/RTTOPO error and warnings on stderr. More...
SPATIALITE_DECLARE void	spatialite_init (int verbose)
	Initializes a SpatiaLite connection. More...
SPATIALITE_DECLARE void	spatialite_init_ex (sqlite3 *db_handle, const void *ptr, int verbose)
	Initializes a SpatiaLite connection. More...
SPATIALITE_DECLARE void	spatialite_init_geos (void)
	Initializes the GEOS library. More...
SPATIALITE_DECLARE void	spatialite_cleanup (void)
	Cleanup a SpatiaLite connection. More...
SPATIALITE_DECLARE void	spatialite_cleanup_ex (const void *ptr)
	Cleanup a SpatiaLite connection. More...
SPATIALITE_DECLARE void	spatialite_finalize_topologies (const void *ptr)
	Partially Cleaning-up a SpatiaLite connection. More...
SPATIALITE_DECLARE void	enable_tiny_point (const void *ptr)
	Enables the BLOB-TinyPoint encoding. More...
SPATIALITE_DECLARE void	disable_tiny_point (const void *ptr)
	Disables the BLOB-TinyPoint encoding. More...
SPATIALITE_DECLARE int	is_tiny_point_enabled (const void *ptr)
	Checks if the BLOB-TinyPoint encoding is enabled or not. More...
SPATIALITE_DECLARE int	dump_shapefile (sqlite3 *sqlite, char *table, char *column, char *shp_path, char *charset, char *geom_type, int verbose, int *rows, char *err_msg)
	Dumps a full geometry-table into an external Shapefile. More...
SPATIALITE_DECLARE int	dump_shapefile_ex (sqlite3 *sqlite, char *table, char *column, char *shp_path, char *charset, char *geom_type, int verbose, int *rows, int colcase_name, char *err_msg)
	Dumps a full geometry-table into an external Shapefile. More...
SPATIALITE_DECLARE int	dump_shapefile_ex2 (sqlite3 *sqlite, void *proj_ctx, char *table, char *column, char *shp_path, char *charset, char *geom_type, int verbose, int *rows, int colcase_name, char *err_msg)
	Dumps a full geometry-table into an external Shapefile. More...
SPATIALITE_DECLARE int	load_shapefile (sqlite3 *sqlite, char *shp_path, char *table, char *charset, int srid, char *column, int coerce2d, int compressed, int verbose, int spatial_index, int *rows, char *err_msg)
	Loads an external Shapefile into a newly created table. More...
SPATIALITE_DECLARE int	load_shapefile_ex (sqlite3 *sqlite, char *shp_path, char *table, char *charset, int srid, char *geo_column, char *gtype, char *pk_column, int coerce2d, int compressed, int verbose, int spatial_index, int *rows, char *err_msg)
	Loads an external Shapefile into a newly created table. More...
SPATIALITE_DECLARE int	load_shapefile_ex2 (sqlite3 *sqlite, char *shp_path, char *table, char *charset, int srid, char *geo_column, char *gtype, char *pk_column, int coerce2d, int compressed, int verbose, int spatial_index, int text_date, int *rows, char *err_msg)
	Loads an external Shapefile into a newly created table. More...
SPATIALITE_DECLARE int	load_shapefile_ex3 (sqlite3 *sqlite, const char *shp_path, const char *table, const char *charset, int srid, const char *geo_column, const char *gtype, const char *pk_column, int coerce2d, int compressed, int verbose, int spatial_index, int text_date, int *rows, int colname_case, char *err_msg)
	Loads an external Shapefile into a newly created table. More...
SPATIALITE_DECLARE int	load_zip_shapefile (sqlite3 *sqlite, const char *zip_path, const char *shp_path, const char *table, const char *charset, int srid, const char *geo_column, const char *gtype, const char *pk_column, int coerce2d, int compressed, int verbose, int spatial_index, int text_date, int *rows, int colname_case, char *err_msg)
	Loads an external Shapefile (from Zipfile) into a newly created table. More...
SPATIALITE_DECLARE int	load_dbf (sqlite3 *sqlite, char *dbf_path, char *table, char *charset, int verbose, int *rows, char *err_msg)
	Loads an external DBF file into a newly created table. More...
SPATIALITE_DECLARE int	load_dbf_ex (sqlite3 *sqlite, char *dbf_path, char *table, char *pk_column, char *charset, int verbose, int *rows, char *err_msg)
	Loads an external DBF file into a newly created table. More...
SPATIALITE_DECLARE int	load_dbf_ex2 (sqlite3 *sqlite, char *dbf_path, char *table, char *pk_column, char *charset, int verbose, int text_date, int *rows, char *err_msg)
	Loads an external DBF file into a newly created table. More...
SPATIALITE_DECLARE int	load_dbf_ex3 (sqlite3 *sqlite, const char *dbf_path, const char *table, const char *pk_column, const char *charset, int verbose, int text_date, int *rows, int colname_case, char *err_msg)
	Loads an external DBF file into a newly created table. More...
SPATIALITE_DECLARE int	load_zip_dbf (sqlite3 *sqlite, const char *zip_file, const char *dbf_path, const char *table, const char *pk_column, const char *charset, int verbose, int text_date, int *rows, int colname_case, char *err_msg)
	Loads an external DBF file (from Zipfile) into a newly created table. More...
SPATIALITE_DECLARE int	dump_dbf (sqlite3 *sqlite, char *table, char *dbf_path, char *charset, char *err_msg)
	Dumps a full table into an external DBF file. More...
SPATIALITE_DECLARE int	dump_dbf_ex (sqlite3 *sqlite, char *table, char *dbf_path, char *charset, int *rows, char *err_msg)
	Dumps a full table into an external DBF file. More...
SPATIALITE_DECLARE int	dump_dbf_ex2 (sqlite3 *sqlite, char *table, char *dbf_path, char *charset, int *rows, int colname_case, char *err_msg)
	Dumps a full table into an external DBF file. More...
SPATIALITE_DECLARE int	load_XL (sqlite3 *sqlite, const char *path, const char *table, unsigned int worksheetIndex, int first_titles, unsigned int *rows, char *err_msg)
	Loads an external spreadsheet (.xls) file into a newly created table. More...
SPATIALITE_DECLARE double	math_round (double value)
	A portable replacement for C99 round() More...
SPATIALITE_DECLARE sqlite3_int64	math_llabs (sqlite3_int64 value)
	A portable replacement for C99 llabs() More...
SPATIALITE_DECLARE int	spatial_ref_sys_init (sqlite3 *sqlite, int verbose)
	Inserts the inlined EPSG dataset into the "spatial_ref_sys" table. More...
SPATIALITE_DECLARE int	spatial_ref_sys_init2 (sqlite3 *sqlite, int mode, int verbose)
	Inserts the inlined EPSG dataset into the "spatial_ref_sys" table. More...
SPATIALITE_DECLARE int	insert_epsg_srid (sqlite3 *sqlite, int srid)
	Inserts some inlined EPSG definition into the "spatial_ref_sys" table. More...
SPATIALITE_DECLARE int	srid_is_geographic (sqlite3 *sqlite, int srid, int *geographic)
	checks a SRID definition from the "spatial_ref_sys" table determining if it is of the geographic type More...
SPATIALITE_DECLARE int	srid_is_projected (sqlite3 *sqlite, int srid, int *projected)
	checks a SRID definition from the "spatial_ref_sys" table determining if it is of the projected type More...
SPATIALITE_DECLARE int	srid_has_flipped_axes (sqlite3 *sqlite, int srid, int *flipped)
	checks a SRID definition from the "spatial_ref_sys" table determining if the axes order is X-Y or Y-X More...
SPATIALITE_DECLARE char *	srid_get_spheroid (sqlite3 *sqlite, int srid)
	checks a SRID definition from the "spatial_ref_sys" table then returning the corresponding Spheroid name More...
SPATIALITE_DECLARE char *	srid_get_prime_meridian (sqlite3 *sqlite, int srid)
	checks a SRID definition from the "spatial_ref_sys" table then returning the corresponding Prime Meridian name More...
SPATIALITE_DECLARE char *	srid_get_projection (sqlite3 *sqlite, int srid)
	checks a SRID definition from the "spatial_ref_sys" table then returning the corresponding Projection name More...
SPATIALITE_DECLARE char *	srid_get_datum (sqlite3 *sqlite, int srid)
	checks a SRID definition from the "spatial_ref_sys" table then returning the corresponding Datum name More...
SPATIALITE_DECLARE char *	srid_get_unit (sqlite3 *sqlite, int srid)
	checks a SRID definition from the "spatial_ref_sys" table then returning the corresponding Unit name More...
SPATIALITE_DECLARE char *	srid_get_axis (sqlite3 *sqlite, int srid, char axis, char mode)
	checks a SRID definition from the "spatial_ref_sys" table then returning an Axis definition More...
SPATIALITE_DECLARE int	is_kml_constant (sqlite3 *sqlite, char *table, char *column)
	Checks if a column is actually defined into the given table. More...
SPATIALITE_DECLARE int	dump_kml (sqlite3 *sqlite, char *table, char *geom_col, char *kml_path, char *name_col, char *desc_col, int precision)
	Dumps a full geometry-table into an external KML file. More...
SPATIALITE_DECLARE int	dump_kml_ex (sqlite3 *sqlite, char *table, char *geom_col, char *kml_path, char *name_col, char *desc_col, int precision, int *rows)
	Dumps a full geometry-table into an external KML file. More...
SPATIALITE_DECLARE void	check_duplicated_rows (sqlite3 *sqlite, char *table, int *dupl_count)
	Checks for duplicated rows into the same table. More...
SPATIALITE_DECLARE void	remove_duplicated_rows (sqlite3 *sqlite, char *table)
	Remove duplicated rows from a table. More...
SPATIALITE_DECLARE void	remove_duplicated_rows_ex (sqlite3 *sqlite, char *table, int *removed)
	Remove duplicated rows from a table. More...
SPATIALITE_DECLARE void	remove_duplicated_rows_ex2 (sqlite3 *sqlite, char *table, int *removed, int transaction)
	Remove duplicated rows from a table. More...
SPATIALITE_DECLARE void	elementary_geometries (sqlite3 *sqlite, char *inTable, char *geometry, char *outTable, char *pKey, char *multiId)
	Creates a derived table surely containing elementary Geometries. More...
SPATIALITE_DECLARE void	elementary_geometries_ex (sqlite3 *sqlite, char *inTable, char *geometry, char *outTable, char *pKey, char *multiId, int *rows)
	Creates a derived table surely containing elementary Geometries. More...
SPATIALITE_DECLARE void	elementary_geometries_ex2 (sqlite3 *sqlite, char *inTable, char *geometry, char *outTable, char *pKey, char *multiId, int *rows, int transaction)
	Creates a derived table surely containing elementary Geometries. More...
SPATIALITE_DECLARE void	elementary_geometries_ex3 (sqlite3 *sqlite, char *inTable, char *geometry, char *outTable, char *pKey, char *multiId, const void *options, int *rows, int transaction)
	Creates a derived table surely containing elementary Geometries. More...
SPATIALITE_DECLARE int	dump_geojson (sqlite3 *sqlite, char *table, char *geom_col, char *outfile_path, int precision, int option)
	Dumps a full geometry-table into an external GeoJSON file (old specification) More...
SPATIALITE_DECLARE int	dump_geojson_ex (sqlite3 *sqlite, char *table, char *geom_col, char *outfile_path, int precision, int option, int *rows)
	Dumps a full geometry-table into an external GeoJSON file (old specification) More...
SPATIALITE_DECLARE int	dump_geojson2 (sqlite3 *sqlite, char *table, char *geom_col, char *outfile_path, int precision, int lon_lat, int m_coords, int indented, int colname_case, int *rows, char **error_message)
	Dumps a full geometry-table into an external GeoJSON file (RFC 7946) More...
SPATIALITE_DECLARE int	load_geojson (sqlite3 *sqlite, char *path, char *table, char *column, int spatial_index, int srid, int colname_case, int *rows, char **error_message)
	Loads an external GeoJSON file into a newly created table. More...
SPATIALITE_DECLARE int	update_layer_statistics (sqlite3 *sqlite, const char *table, const char *column)
	Updates the LAYER_STATICS metadata table. More...
SPATIALITE_DECLARE int	gaiaStatisticsInvalidate (sqlite3 *handle, const char *table, const char *geometry)
	Immediately and unconditionally invalidates the already existing Statistics. More...
SPATIALITE_DECLARE gaiaGeomCollPtr	gaiaGetLayerExtent (sqlite3 *handle, const char *table, const char *geometry, int mode)
	Queries the Metadata tables returning the Layer Full Extent. More...
SPATIALITE_DECLARE gaiaVectorLayersListPtr	gaiaGetVectorLayersList (sqlite3 *handle, const char *table, const char *geometry, int mode)
	Queries the Metadata tables supporting Vector Layers. More...
SPATIALITE_DECLARE int	gaiaCreateMetaCatalogTables (sqlite3 *handle)
	Creates (or re-creates) the "splite_metacatalog" and "splite_metacalog_statistics" tables. More...
SPATIALITE_DECLARE int	gaiaUpdateMetaCatalogStatistics (sqlite3 *handle, const char *table, const char *column)
	Updates the "splite_metacatalog_statistics" table. More...
SPATIALITE_DECLARE int	gaiaUpdateMetaCatalogStatisticsFromMaster (sqlite3 *handle, const char *master_table, const char *table_name, const char *column_name)
	Updates the "splite_metacatalog_statistics" table (using a Master Table). More...
SPATIALITE_DECLARE void	gaiaFreeVectorLayersList (gaiaVectorLayersListPtr ptr)
	Destroys a VectorLayersList object. More...
SPATIALITE_DECLARE int	gaiaDropTable (sqlite3 *sqlite, const char *table)
	Drops a layer-table, removing any related dependency. More...
SPATIALITE_DECLARE int	gaiaDropTableEx (sqlite3 *sqlite, const char *prefix, const char *table)
	Drops a layer-table, removing any related dependency. More...
SPATIALITE_DECLARE int	gaiaDropTableEx2 (sqlite3 *sqlite, const char *prefix, const char *table, int transaction)
	Drops a layer-table, removing any related dependency. More...
SPATIALITE_DECLARE int	gaiaDropTableEx3 (sqlite3 *sqlite, const char *prefix, const char *table, int transaction, char **error_message)
	Drops a layer-table, removing any related dependency. More...
SPATIALITE_DECLARE int	gaiaDropTable5 (sqlite3 *sqlite, const char *prefix, const char *table, char **error_message)
	Drops a layer-table, removing any related dependency. More...
SPATIALITE_DECLARE int	gaiaRenameTable (sqlite3 *sqlite, const char *prefix, const char *old_name, const char *new_name, char **error_message)
	Renames a Table. More...
SPATIALITE_DECLARE int	gaiaRenameColumn (sqlite3 *sqlite, const char *prefix, const char *table, const char *old_name, const char *new_name, char **error_message)
	Renames a Table's Column. More...
SPATIALITE_DECLARE int	check_geometry_column (sqlite3 *sqlite, const char *table, const char *geom, const char *report_path, int *n_rows, int *n_invalids, char **err_msg)
	Checks a Geometry Column for validity. More...
SPATIALITE_DECLARE int	check_geometry_column_r (const void *p_cache, sqlite3 *sqlite, const char *table, const char *geom, const char *report_path, int *n_rows, int *n_invalids, char **err_msg)
	Checks a Geometry Column for validity. More...
SPATIALITE_DECLARE int	check_all_geometry_columns (sqlite3 *sqlite, const char *output_dir, int *n_invalids, char **err_msg)
	Checks all Geometry Columns for validity. More...
SPATIALITE_DECLARE int	check_all_geometry_columns_r (const void *p_cache, sqlite3 *sqlite, const char *output_dir, int *n_invalids, char **err_msg)
	Checks all Geometry Columns for validity. More...
SPATIALITE_DECLARE int	sanitize_geometry_column (sqlite3 *sqlite, const char *table, const char *geom, const char *tmp_table, const char *report_path, int *n_invalids, int *n_repaired, int *n_discarded, int *n_failures, char **err_msg)
	Sanitizes a Geometry Column making all invalid geometries to be valid. More...
SPATIALITE_DECLARE int	sanitize_geometry_column_r (const void *p_cache, sqlite3 *sqlite, const char *table, const char *geom, const char *tmp_table, const char *report_path, int *n_invalids, int *n_repaired, int *n_discarded, int *n_failures, char **err_msg)
	Sanitizes a Geometry Column making all invalid geometries to be valid. More...
SPATIALITE_DECLARE int	sanitize_all_geometry_columns (sqlite3 *sqlite, const char *tmp_prefix, const char *output_dir, int *not_repaired, char **err_msg)
	Sanitizes all Geometry Columns making all invalid geometries to be valid. More...
SPATIALITE_DECLARE int	sanitize_all_geometry_columns_r (const void *p_cache, sqlite3 *sqlite, const char *tmp_prefix, const char *output_dir, int *not_repaired, char **err_msg)
	Sanitizes all Geometry Columns making all invalid geometries to be valid. More...
SPATIALITE_DECLARE int	gaiaCutter (sqlite3 *db_handle, const void *cache, const char *in_db_prefix, const char *input_table, const char *input_geom, const char *blade_db_prefix, const char *blade_table, const char *blade_geom, const char *output_table, int transaction, int ram_tmp_store, char **message)
	Will precisely cut the input dataset against polygonal blade(s) and will consequently create and populate an output dataset. More...
SPATIALITE_DECLARE int	gaia_create_routing_nodes (sqlite3 *db_handle, const void *cache, const char *prefix, const char *table, const char *geom_column, const char *from_column, const char *to_column)
	Will attempt to create the Routing Nodes columns for a spatial table. More...
SPATIALITE_DECLARE int	gaia_create_routing (sqlite3 *db_handle, const void *cache, const char *routing_data_table, const char *virtual_routing_table, const char *input_table, const char *from_column, const char *to_column, const char *geom_column, const char *cost_column, const char *name_column, int a_star_enabled, int bidirectional, const char *oneway_from, const char *oneway_to, int overwrite)
	Will attempt to create a VirtualRouting from an input table. More...
SPATIALITE_DECLARE gaiaGeomCollPtr	gaiaGetRTreeFullExtent (sqlite3 *db_handle, const char *db_prefix, const char *name, int srid)
	Will attempt to retrieve the Full Extent from an R*Tree (SpatiaLite) More...
SPATIALITE_DECLARE gaiaGeomCollPtr	gaiaGetGpkgRTreeFullExtent (sqlite3 *db_handle, const char *db_prefix, const char *name, int srid)
	Will attempt to retrieve the Full Extent from an R*Tree (GeoPackage) More...
SPATIALITE_DECLARE const char *	gaia_create_routing_get_last_error (const void *cache)
SPATIALITE_DECLARE int	gaiaGPKG2Spatialite (sqlite3 *handle_in, const char *gpkg_in_path, sqlite3 *handle_out, const char *splite_out_path)
SPATIALITE_DECLARE int	gaiaSpatialite2GPKG (sqlite3 *handle_in, const char *splite_in_path, sqlite3 *handle_out, const char *gpkg_out_path)
SPATIALITE_DECLARE const void *	gaiaGetCurrentProjContext (const void *cache)
SPATIALITE_DECLARE int	gaiaSetCurrentCachedProj (const void *cache, void *pj, const char *proj_string_1, const char *proj_string_2, void *area)
SPATIALITE_DECLARE void *	gaiaGetCurrentCachedProj (const void *cache)
SPATIALITE_DECLARE int	gaiaCurrentCachedProjMatches (const void *cache, const char *proj_string_1, const char *proj_string_2, void *area)
SPATIALITE_DECLARE char *	gaiaGetDbObjectScope (sqlite3 *handle, const char *db_prefix, const char *obj_name)

Detailed Description

Main SpatiaLite header file.

Function Documentation

check_all_geometry_columns()

SPATIALITE_DECLARE int check_all_geometry_columns	(	sqlite3 *	sqlite,
		const char *	output_dir,
		int *	n_invalids,
		char **	err_msg
	)

Checks all Geometry Columns for validity.

Parameters

sqlite	handle to current DB connection
output_dir	pathname of the directory to be created for report-files
n_invalids	if this variable is not NULL on successful completion will contain the total number of invalid Geometries found
err_msg	if this variable is not NULL and the return status is ZERO (failure), an appropriate error message will be returned

See also

check_all_geometry_columns_r, check_geometry_column, sanitize_geometry_column, sanitize_all_geometry_columns

Note

this function will check all Geometry Columns (vector layers) for validity; a HTML report will be produced.
an eventual error message returned via err_msg requires to be deallocated by invoking free()
not reentrant and thread unsafe.

Returns

0 on failure, any other value on success

check_all_geometry_columns_r()

SPATIALITE_DECLARE int check_all_geometry_columns_r	(	const void *	p_cache,
		sqlite3 *	sqlite,
		const char *	output_dir,
		int *	n_invalids,
		char **	err_msg
	)

Checks all Geometry Columns for validity.

Parameters

p_cache	a memory pointer returned by spatialite_alloc_connection()
sqlite	handle to current DB connection
output_dir	pathname of the directory to be created for report-files
n_invalids	if this variable is not NULL on successful completion will contain the total number of invalid Geometries found
err_msg	if this variable is not NULL and the return status is ZERO (failure), an appropriate error message will be returned

See also

check_all_geometry_columns, check_geometry_column, sanitize_geometry_column, sanitize_all_geometry_columns

Note

this function will check all Geometry Columns (vector layers) for validity; a HTML report will be produced.
an eventual error message returned via err_msg requires to be deallocated by invoking free()
reentrant and thread-safe.

Returns

0 on failure, any other value on success

check_duplicated_rows()

SPATIALITE_DECLARE void check_duplicated_rows	(	sqlite3 *	sqlite,
		char *	table,
		int *	dupl_count
	)

Checks for duplicated rows into the same table.

Parameters

sqlite	handle to current DB connection
table	name of the table to be checked
dupl_count	on completion will contain the number of duplicated rows found

See also

remove_duplicated_rows

Note

two (or more) rows are assumed to be duplicated if any column

value (excluding any Primary Key column) is exacly the same

check_geometry_column()

SPATIALITE_DECLARE int check_geometry_column	(	sqlite3 *	sqlite,
		const char *	table,
		const char *	geom,
		const char *	report_path,
		int *	n_rows,
		int *	n_invalids,
		char **	err_msg
	)

Checks a Geometry Column for validity.

Parameters

sqlite	handle to current DB connection
table	name of the table
geometry	name of the column to be checked
report_path	pathname of the report-file
n_rows	if this variable is not NULL on successful completion will contain the total number of rows found into the checkeck table
n_invalids	if this variable is not NULL on successful completion will contain the total number of invalid Geometries found into the checkeck table
err_msg	if this variable is not NULL and the return status is ZERO (failure), an appropriate error message will be returned

See also

check_geometry_column_r, check_all_geometry_columns, sanitize_geometry_column, sanitize_all_geometry_columns

Note

this function will check a Geometry Column (layer) for validity; a HTML report will be produced.
an eventual error message returned via err_msg requires to be deallocated by invoking free()
not reentrant and thread unsafe.

Returns

0 on failure, any other value on success

check_geometry_column_r()

SPATIALITE_DECLARE int check_geometry_column_r	(	const void *	p_cache,
		sqlite3 *	sqlite,
		const char *	table,
		const char *	geom,
		const char *	report_path,
		int *	n_rows,
		int *	n_invalids,
		char **	err_msg
	)

Checks a Geometry Column for validity.

Parameters

p_cache	a memory pointer returned by spatialite_alloc_connection()
sqlite	handle to current DB connection
table	name of the table
geometry	name of the column to be checked
report_path	pathname of the report-file
n_rows	if this variable is not NULL on successful completion will contain the total number of rows found into the checkeck table
n_invalids	if this variable is not NULL on successful completion will contain the total number of invalid Geometries found into the checkeck table
err_msg	if this variable is not NULL and the return status is ZERO (failure), an appropriate error message will be returned

See also

check_geometry_column, check_all_geometry_columns, sanitize_geometry_column, sanitize_all_geometry_columns

Note

this function will check a Geometry Column (layer) for validity; a HTML report will be produced.
an eventual error message returned via err_msg requires to be deallocated by invoking free()
reentrant and thread-safe.

Returns

0 on failure, any other value on success

disable_tiny_point()

SPATIALITE_DECLARE void disable_tiny_point

(

const void *

ptr

)

Disables the BLOB-TinyPoint encoding.

Parameters

ptr	the same memory pointer passed to the corresponding call to spatialite_init_ex() and returned by spatialite_alloc_connection()

See also

disable_tiny_point, is_tiny_point_enabled

dump_dbf()

SPATIALITE_DECLARE int dump_dbf	(	sqlite3 *	sqlite,
		char *	table,
		char *	dbf_path,
		char *	charset,
		char *	err_msg
	)

Dumps a full table into an external DBF file.

Parameters

sqlite	handle to current DB connection
table	the name of the table to be exported
dbf_path	pathname of the DBF to be exported
charset	a valid GNU ICONV charset to be used for DBF text strings
err_msg	on completion will contain an error message (if any)

See also

dump_dbf_ex, dump_dbf_ex2

Returns

0 on failure, any other value on success

dump_dbf_ex()

SPATIALITE_DECLARE int dump_dbf_ex	(	sqlite3 *	sqlite,
		char *	table,
		char *	dbf_path,
		char *	charset,
		int *	rows,
		char *	err_msg
	)

Dumps a full table into an external DBF file.

Parameters

sqlite	handle to current DB connection
table	the name of the table to be exported
dbf_path	pathname of the DBF to be exported
charset	a valid GNU ICONV charset to be used for DBF text strings
rows	on completion will contain the total number of exported rows
err_msg	on completion will contain an error message (if any)

See also

dump_dbf, dump_dbf_ex2

Returns

0 on failure, any other value on success

dump_dbf_ex2()

SPATIALITE_DECLARE int dump_dbf_ex2	(	sqlite3 *	sqlite,
		char *	table,
		char *	dbf_path,
		char *	charset,
		int *	rows,
		int	colname_case,
		char *	err_msg
	)

Dumps a full table into an external DBF file.

Parameters

sqlite	handle to current DB connection
table	the name of the table to be exported
dbf_path	pathname of the DBF to be exported
charset	a valid GNU ICONV charset to be used for DBF text strings
rows	on completion will contain the total number of exported rows
colname_case	one between GAIA_DBF_COLNAME_LOWERCASE, GAIA_DBF_COLNAME_UPPERCASE or GAIA_DBF_COLNAME_CASE_IGNORE.
err_msg	on completion will contain an error message (if any)

See also

dump_dbf, dump_dbf_ex

Returns

0 on failure, any other value on success

dump_geojson()

SPATIALITE_DECLARE int dump_geojson	(	sqlite3 *	sqlite,
		char *	table,
		char *	geom_col,
		char *	outfile_path,
		int	precision,
		int	option
	)

Dumps a full geometry-table into an external GeoJSON file (old specification)

Parameters

sqlite	handle to current DB connection
table	the name of the table to be exported
geom_col	the name of the geometry column
outfile_path	pathname for the GeoJSON file to be written to
precision	number of decimal digits for coordinates
option	the format to use for output

See also

dump_geojson_ex, dump_geojson2

Note

valid values for option are:

• 0 no option
• 1 GeoJSON MBR
• 2 GeoJSON Short CRS (e.g EPSG:4326)
• 3 MBR + Short CRS
• 4 GeoJSON Long CRS (e.g urn:ogc:def:crs:EPSG::4326)
• 5 MBR + Long CRS

Returns

0 on failure, any other value on success

dump_geojson2()

SPATIALITE_DECLARE int dump_geojson2	(	sqlite3 *	sqlite,
		char *	table,
		char *	geom_col,
		char *	outfile_path,
		int	precision,
		int	lon_lat,
		int	m_coords,
		int	indented,
		int	colname_case,
		int *	rows,
		char **	error_message
	)

Dumps a full geometry-table into an external GeoJSON file (RFC 7946)

Parameters

sqlite	handle to current DB connection
table	the name of the table to be exported
geom_col	the name of the geometry column
outfile_path	pathname for the GeoJSON file to be written to
precision	number of decimal digits for coordinates
lon_lat	TRUE if all coordinates are expressed as WGS84 longitudes and latitudes (as required by RFC 7946); FALSE if they are in some other (undefined) CRS
m_coords	TRUE if M-values will be exported as ordinary coordinates; FALSE for strict RFC 4796 conformance (no M-Values at all)
indent	TRUE if the GeoJSON file will be properly indented for enhanced human readibility; FALSE if the GeoJSON file will be in a single monolithic line without blank spaces.
colname_case	one between GAIA_DBF_COLNAME_LOWERCASE, GAIA_DBF_COLNAME_UPPERCASE or GAIA_DBF_COLNAME_CASE_IGNORE.
rows	on completion will contain the total number of exported rows
error_message	will point to a diagnostic error message in case of failure, otherwise NULL

See also

dump_geojson, dump_geojson_ex

Returns

0 on failure, any other value on success

Note

you are expected to free before or later an eventual error message by calling sqlite3_free()

dump_geojson_ex()

SPATIALITE_DECLARE int dump_geojson_ex	(	sqlite3 *	sqlite,
		char *	table,
		char *	geom_col,
		char *	outfile_path,
		int	precision,
		int	option,
		int *	rows
	)

Dumps a full geometry-table into an external GeoJSON file (old specification)

Parameters

sqlite	handle to current DB connection
table	the name of the table to be exported
geom_col	the name of the geometry column
outfile_path	pathname for the GeoJSON file to be written to
precision	number of decimal digits for coordinates
option	the format to use for output
rows	on completion will contain the total number of exported rows

See also

dump_geojson, dump_geojson2

Note

valid values for option are:

• 0 no option
• 1 GeoJSON MBR
• 2 GeoJSON Short CRS (e.g EPSG:4326)
• 3 MBR + Short CRS
• 4 GeoJSON Long CRS (e.g urn:ogc:def:crs:EPSG::4326)
• 5 MBR + Long CRS

Returns

0 on failure, any other value on success

dump_kml()

SPATIALITE_DECLARE int dump_kml	(	sqlite3 *	sqlite,
		char *	table,
		char *	geom_col,
		char *	kml_path,
		char *	name_col,
		char *	desc_col,
		int	precision
	)

Dumps a full geometry-table into an external KML file.

Parameters

sqlite	handle to current DB connection
table	the name of the table to be exported
geom_col	the name of the geometry column
kml_path	pathname of the KML file to be exported
name_col	column to be used for KML "name" (may be null)
desc_col	column to be used for KML "description" (may be null)
precision	number of decimal digits for coordinates

See also

dump_kml_ex

Returns

0 on failure, any other value on success

dump_kml_ex()

SPATIALITE_DECLARE int dump_kml_ex	(	sqlite3 *	sqlite,
		char *	table,
		char *	geom_col,
		char *	kml_path,
		char *	name_col,
		char *	desc_col,
		int	precision,
		int *	rows
	)

Dumps a full geometry-table into an external KML file.

Parameters

sqlite	handle to current DB connection
table	the name of the table to be exported
geom_col	the name of the geometry column
kml_path	pathname of the KML file to be exported
name_col	column to be used for KML "name" (may be null)
desc_col	column to be used for KML "description" (may be null)
precision	number of decimal digits for coordinates
rows	on completion will contain the total number of exported rows

See also

dump_kml

Returns

0 on failure, any other value on success

dump_shapefile()

SPATIALITE_DECLARE int dump_shapefile	(	sqlite3 *	sqlite,
		char *	table,
		char *	column,
		char *	shp_path,
		char *	charset,
		char *	geom_type,
		int	verbose,
		int *	rows,
		char *	err_msg
	)

Dumps a full geometry-table into an external Shapefile.

Parameters

sqlite	handle to current DB connection
table	the name of the table to be exported
column	the name of the geometry column
shp_path	pathname of the Shapefile to be exported (no suffix)
charset	a valid GNU ICONV charset to be used for DBF text strings
geom_type	"POINT", "LINESTRING", "POLYGON", "MULTIPOINT" or NULL
verbose	if TRUE a short report is shown on stderr
rows	on completion will contain the total number of exported rows
err_msg	on completion will contain an error message (if any)

See also

dump_shapefile_ex

Returns

0 on failure, any other value on success

dump_shapefile_ex()

SPATIALITE_DECLARE int dump_shapefile_ex	(	sqlite3 *	sqlite,
		char *	table,
		char *	column,
		char *	shp_path,
		char *	charset,
		char *	geom_type,
		int	verbose,
		int *	rows,
		int	colcase_name,
		char *	err_msg
	)

Dumps a full geometry-table into an external Shapefile.

Parameters

sqlite	handle to current DB connection
table	the name of the table to be exported
column	the name of the geometry column
shp_path	pathname of the Shapefile to be exported (no suffix)
charset	a valid GNU ICONV charset to be used for DBF text strings
geom_type	"POINT", "LINESTRING", "POLYGON", "MULTIPOINT" or NULL
verbose	if TRUE a short report is shown on stderr
rows	on completion will contain the total number of exported rows
colname_case	one between GAIA_DBF_COLNAME_LOWERCASE, GAIA_DBF_COLNAME_UPPERCASE or GAIA_DBF_COLNAME_CASE_IGNORE.
err_msg	on completion will contain an error message (if any)

See also

dump_shapefile

Returns

0 on failure, any other value on success

dump_shapefile_ex2()

SPATIALITE_DECLARE int dump_shapefile_ex2	(	sqlite3 *	sqlite,
		void *	proj_ctx,
		char *	table,
		char *	column,
		char *	shp_path,
		char *	charset,
		char *	geom_type,
		int	verbose,
		int *	rows,
		int	colcase_name,
		char *	err_msg
	)

Dumps a full geometry-table into an external Shapefile.

Parameters

sqlite	handle to current DB connection
proj_ctx	pointer to the current PROJ.6 context (may be NULL)
table	the name of the table to be exported
column	the name of the geometry column
shp_path	pathname of the Shapefile to be exported (no suffix)
charset	a valid GNU ICONV charset to be used for DBF text strings
geom_type	"POINT", "LINESTRING", "POLYGON", "MULTIPOINT" or NULL
verbose	if TRUE a short report is shown on stderr
rows	on completion will contain the total number of exported rows
colname_case	one between GAIA_DBF_COLNAME_LOWERCASE, GAIA_DBF_COLNAME_UPPERCASE or GAIA_DBF_COLNAME_CASE_IGNORE.
err_msg	on completion will contain an error message (if any)

See also

dump_shapefile

Returns

0 on failure, any other value on success

elementary_geometries()

SPATIALITE_DECLARE void elementary_geometries	(	sqlite3 *	sqlite,
		char *	inTable,
		char *	geometry,
		char *	outTable,
		char *	pKey,
		char *	multiId
	)

Creates a derived table surely containing elementary Geometries.

Parameters

sqlite	handle to current DB connection
inTable	name of the input table
geometry	name of the Geometry column
outTable	name of the output table to be created
pKey	name of the Primary Key column in the output table
multiId	name of the column identifying origins in the output table

See also

elementary_geometries_ex

Note

if the input table contains some kind of complex Geometry (MULTIPOINT, MULTILINESTRING, MULTIPOLYGON or GEOMETRYCOLLECTION), then many rows are inserted into the output table: each single row will contain the same attributes and an elementaty Geometry. All the rows created by expanding the same input row will expose the same value in the "multiId" column.

elementary_geometries_ex()

SPATIALITE_DECLARE void elementary_geometries_ex	(	sqlite3 *	sqlite,
		char *	inTable,
		char *	geometry,
		char *	outTable,
		char *	pKey,
		char *	multiId,
		int *	rows
	)

Creates a derived table surely containing elementary Geometries.

Parameters

sqlite	handle to current DB connection
inTable	name of the input table
geometry	name of the Geometry column
outTable	name of the output table to be created
pKey	name of the Primary Key column in the output table
multiId	name of the column identifying origins in the output table
rows	on completion will contain the total number of inserted rows

See also

elementary_geometries_ex2

Note

if the input table contains some kind of complex Geometry (MULTIPOINT, MULTILINESTRING, MULTIPOLYGON or GEOMETRYCOLLECTION), then many rows are inserted into the output table: each single row will contain the same attributes and an elementaty Geometry. All the rows created by expanding the same input row will expose the same value in the "multiId" column.

elementary_geometries_ex2()

SPATIALITE_DECLARE void elementary_geometries_ex2	(	sqlite3 *	sqlite,
		char *	inTable,
		char *	geometry,
		char *	outTable,
		char *	pKey,
		char *	multiId,
		int *	rows,
		int	transaction
	)

Creates a derived table surely containing elementary Geometries.

Parameters

sqlite	handle to current DB connection
inTable	name of the input table
geometry	name of the Geometry column
outTable	name of the output table to be created
pKey	name of the Primary Key column in the output table
multiId	name of the column identifying origins in the output table
rows	on completion will contain the total number of inserted rows
transaction	boolena; if set to TRUE will internally handle a SQL Transaction

See also

elementary_geometries_ex3

Note

if the input table contains some kind of complex Geometry (MULTIPOINT, MULTILINESTRING, MULTIPOLYGON or GEOMETRYCOLLECTION), then many rows are inserted into the output table: each single row will contain the same attributes and an elementaty Geometry. All the rows created by expanding the same input row will expose the same value in the "multiId" column.

elementary_geometries_ex3()

SPATIALITE_DECLARE void elementary_geometries_ex3	(	sqlite3 *	sqlite,
		char *	inTable,
		char *	geometry,
		char *	outTable,
		char *	pKey,
		char *	multiId,
		const void *	options,
		int *	rows,
		int	transaction
	)

Creates a derived table surely containing elementary Geometries.

Parameters

sqlite	handle to current DB connection
inTable	name of the input table
geometry	name of the Geometry column
outTable	name of the output table to be created
pKey	name of the Primary Key column in the output table
multiId	name of the column identifying origins in the output table
options	pointer to an Options list created by gaiaAuxClonerCreate()
rows	on completion will contain the total number of inserted rows
transaction	boolena; if set to TRUE will internally handle a SQL Transaction

See also

elementary_geometries

Note

if the input table contains some kind of complex Geometry (MULTIPOINT, MULTILINESTRING, MULTIPOLYGON or GEOMETRYCOLLECTION), then many rows are inserted into the output table: each single row will contain the same attributes and an elementaty Geometry. All the rows created by expanding the same input row will expose the same value in the "multiId" column.

enable_tiny_point()

SPATIALITE_DECLARE void enable_tiny_point

(

const void *

ptr

)

Enables the BLOB-TinyPoint encoding.

Parameters

ptr	the same memory pointer passed to the corresponding call to spatialite_init_ex() and returned by spatialite_alloc_connection()

See also

disable_tiny_point, is_tiny_point_enabled

gaia_create_routing()

SPATIALITE_DECLARE int gaia_create_routing	(	sqlite3 *	db_handle,
		const void *	cache,
		const char *	routing_data_table,
		const char *	virtual_routing_table,
		const char *	input_table,
		const char *	from_column,
		const char *	to_column,
		const char *	geom_column,
		const char *	cost_column,
		const char *	name_column,
		int	a_star_enabled,
		int	bidirectional,
		const char *	oneway_from,
		const char *	oneway_to,
		int	overwrite
	)

Will attempt to create a VirtualRouting from an input table.

Parameters

db_handle	handle to the current SQLite connection
cache	a memory pointer returned by spatialite_alloc_connection()
routing_data_table	name of the Routing Data Table to be created.
virtual_routing_table	name of the VirtualRouting Table to be created.
input_table	name of the input table to be processed.
from_column	name of the input table column containing NodeFrom.
to_column	name of the input table column containing NodeTo.
geom_column	name of the input table column containing Linestring Geometries (could be eventually NULL).
cost_column	name of the input table column containing Cost values (could be eventually NULL).
name_column	name of the input table column containing RoadName (could be eventually NULL).
a_star_enabled	if set to TRUE the Routing Data Table will support both Djiskra's Shortest Path and A* algorithms; if set to FALSE only the Djiskra's algorithm will be supported.
bidirectional	if set to TRUE all input arcs/links will be assumed to be bidirectional (from-to and to-from); if set to FALSE all input arcs/links will be assumed to be unidirectional (from-to only).
oneway_from	name of the input table column containing OneWayFrom (could be eventually NULL).
oneway_to	name of the input table column containing OneWayTo (could be eventually NULL).
overwrite	if set to TRUE both the Routing Data Table and the VirtualRouting Table will be dropped if already existing; if set to FALSE an already existing Routing Data Table or VirtualRouting Table will cause a fatal error.

Returns

0 on failure, any other value on success

Note

at least one between geom_column and cost_column shall not be NULL. both oneway_from and oneway_to must be NULL or must contain a valid column name; mixing a column name and a NULL will be considered a fatal error.

gaia_create_routing_nodes()

SPATIALITE_DECLARE int gaia_create_routing_nodes	(	sqlite3 *	db_handle,
		const void *	cache,
		const char *	prefix,
		const char *	table,
		const char *	geom_column,
		const char *	from_column,
		const char *	to_column
	)

Will attempt to create the Routing Nodes columns for a spatial table.

Parameters

db_handle	handle to the current SQLite connection
cache	a memory pointer returned by spatialite_alloc_connection()
prefix	schema prefix identifying the target DB (could be eventually NULL)
table	name of the table to be processed.
geom_column	name of the table column containing Linestring Geometries (could be eventually NULL).
from_column	name of the table column where NodeFrom values will be stored.
to_column	name of the column where ToFrom values will be stored.

Returns

0 on failure, any other value on success

gaiaCreateMetaCatalogTables()

SPATIALITE_DECLARE int gaiaCreateMetaCatalogTables

(

sqlite3 *

handle

)

Creates (or re-creates) the "splite_metacatalog" and "splite_metacalog_statistics" tables.

Parameters

handle

SQLite handle to current DB connection.

Returns

0 (FALSE) on failure, any other value (TRUE) on success

See also

gaiaUpdateMetaCatalogStatistics, gaiaUpdateMetaCatalogStatisticsFromMaster

gaiaCutter()

SPATIALITE_DECLARE int gaiaCutter	(	sqlite3 *	db_handle,
		const void *	cache,
		const char *	in_db_prefix,
		const char *	input_table,
		const char *	input_geom,
		const char *	blade_db_prefix,
		const char *	blade_table,
		const char *	blade_geom,
		const char *	output_table,
		int	transaction,
		int	ram_tmp_store,
		char **	message
	)

Will precisely cut the input dataset against polygonal blade(s) and will consequently create and populate an output dataset.

Parameters

db_handle	handle to the current SQLite connection
cache	a memory pointer returned by spatialite_alloc_connection()
in_db_prefix	prefix of the database where the input table is expected to be found. if NULL then "MAIN" will be assumed.
input_table	name of the input table to be processed.
input_geometry	name of the input table Geometry column; it could be NULL and in this case the appropriate column name will be automatically determind. anyway if the input table do contains two or more Geometries passing a NULL geometry name will raise a fatal error.
blade_db_prefix	prefix of the database where the "blade" table is expected to be found. if NULL then "MAIN" will be assumed.
blade_table	name of the table expected to contain Polygons or MultiPolygon Geometries acting as blades.
blade_geometry	name of the "blade" table Geometry column; it could be NULL and in this case the appropriate column name will be automatically determind. anyway if the input table do contains two or more Geometries passing a NULL geometry name will raise a fatal error.
output_table	name to assinged to the destination table intended to permanently store all results. this table must non exists.
transaction	boolean; if set to TRUE will internally handle a SQL Transaction.
ram_tmp_store	boolean: if set to TRUE all TEMPORARY tables and indices will be created in RAM, otherwise in a file.
message	pointer to a string buffer; if not NULL it will point on completion an eventual error message.

Returns

0 on failure, any other value on success

Note

the message buffer if not NULL will point to a dymanic memory allocation and is expected to be released by calling sqlite3_free()

gaiaDropTable()

SPATIALITE_DECLARE int gaiaDropTable	(	sqlite3 *	sqlite,
		const char *	table
	)

Drops a layer-table, removing any related dependency.

Parameters

sqlite	handle to current DB connection
table	name of the table to be removed

Note

this function will drop a SpatialTable, SpatialView or VirtualShape being properly registered within the Metadata tables.
an eventual Spatial Index will be dropped as well, and any row referring the selected table will be removed from the Metadata tables.

Returns

0 on failure, any other value on success

See also

gaiaDropTableEx, gaiaRenameTable, gaiaRenameColumn

Note

this one simply is a convenience method alway defaulting to gaiaDropTableEx(sqlite, "main", table);

gaiaDropTable5()

SPATIALITE_DECLARE int gaiaDropTable5	(	sqlite3 *	sqlite,
		const char *	prefix,
		const char *	table,
		char **	error_message
	)

Drops a layer-table, removing any related dependency.

Parameters

sqlite	handle to current DB connection
prefix	schema prefix identifying the target DB "main" always identifies the main DB (primary, not Attached).
table	name of the table or view to be dropped
error_message	will point to a diagnostic error message in case of failure, otherwise NULL

Note

this function will drop a SpatialTable, SpatialView or VirtualShape being properly registered within the Metadata tables.
an eventual Spatial Index will be dropped as well, and any row referring the selected table will be removed from the Metadata tables.
an eventual diagnostic message pointed by error_message must be freed by calling sqlite3_free()

Returns

0 on failure, any other value on success

See also

gaiaDropTableEx3, gaiaRenameTable, gaiaRenameColumn

gaiaDropTableEx()

SPATIALITE_DECLARE int gaiaDropTableEx	(	sqlite3 *	sqlite,
		const char *	prefix,
		const char *	table
	)

Drops a layer-table, removing any related dependency.

Parameters

sqlite	handle to current DB connection
prefix	schema prefix identifying the target DB "main" always identifies the main DB (primary, not Attached).
table	name of the table to be removed

Note

this function will drop a SpatialTable, SpatialView or VirtualShape being properly registered within the Metadata tables.
an eventual Spatial Index will be dropped as well, and any row referring the selected table will be removed from the Metadata tables.

Returns

0 on failure, any other value on success

See also

gaiaDropTableEx2, gaiaRenameTable, gaiaRenameColumn

gaiaDropTableEx2()

SPATIALITE_DECLARE int gaiaDropTableEx2	(	sqlite3 *	sqlite,
		const char *	prefix,
		const char *	table,
		int	transaction
	)

Drops a layer-table, removing any related dependency.

Parameters

sqlite	handle to current DB connection
prefix	schema prefix identifying the target DB "main" always identifies the main DB (primary, not Attached).
table	name of the table to be removed
transaction	boolena; if set to TRUE will internally handle a SQL Transaction

Note

this function will drop a SpatialTable, SpatialView or VirtualShape being properly registered within the Metadata tables.
an eventual Spatial Index will be dropped as well, and any row referring the selected table will be removed from the Metadata tables.

Returns

0 on failure, any other value on success

See also

gaiaDropTable, gaiaRenameTable, gaiaRenameColumn

gaiaDropTableEx3()

SPATIALITE_DECLARE int gaiaDropTableEx3	(	sqlite3 *	sqlite,
		const char *	prefix,
		const char *	table,
		int	transaction,
		char **	error_message
	)

Drops a layer-table, removing any related dependency.

Parameters

sqlite	handle to current DB connection
prefix	schema prefix identifying the target DB "main" always identifies the main DB (primary, not Attached).
table	name of the table to be removed
transaction	boolean; if set to TRUE will internally handle a SQL Transaction
error_message	will point to a diagnostic error message in case of failure, otherwise NULL

Note

this function will drop a SpatialTable, SpatialView or VirtualShape being properly registered within the Metadata tables.
an eventual Spatial Index will be dropped as well, and any row referring the selected table will be removed from the Metadata tables.
an eventual diagnostic message pointed by error_message must be freed by calling sqlite3_free()

Returns

0 on failure, any other value on success

See also

gaiaDropTable5, gaiaRenameTable, gaiaRenameColumn

Deprecated:

use gaiaDropTable5() as a full replacement

gaiaFreeVectorLayersList()

SPATIALITE_DECLARE void gaiaFreeVectorLayersList

(

gaiaVectorLayersListPtr

ptr

)

Destroys a VectorLayersList object.

Parameters

ptr	pointer to the VectorLayersList object to be destroyed

See also

gaiaGetVectorLayersList

Examples

demo5.c.

gaiaGetGpkgRTreeFullExtent()

SPATIALITE_DECLARE gaiaGeomCollPtr gaiaGetGpkgRTreeFullExtent	(	sqlite3 *	db_handle,
		const char *	db_prefix,
		const char *	name,
		int	srid
	)

Will attempt to retrieve the Full Extent from an R*Tree (GeoPackage)

Parameters

db_handle	handle to the current SQLite connection
prefix	schema prefix identifying the DB containing the R*Tree "main" always identifies the main DB (primary, not Attached).
name	the name of the R*Tree table
srid	the intended SRID for the R*Tree

See also

gaiaGetRTreeFullExtent

Returns

a Rectangle Geometry corresponding to the Full Extent,
NULL on failure.

gaiaGetLayerExtent()

SPATIALITE_DECLARE gaiaGeomCollPtr gaiaGetLayerExtent	(	sqlite3 *	handle,
		const char *	table,
		const char *	geometry,
		int	mode
	)

Queries the Metadata tables returning the Layer Full Extent.

Parameters

handle	SQLite handle to current DB connection.
table	VectorLayer Table (or View, or VirtualShape).
geometry	Geometry Column name.
mode	if TRUE a PESSIMISTIC statistics update will be implied, otherwise OPTIMISTIC.

Returns

the pointer to the newly created Geometry (Envelope): NULL on failure

See also

update_layer_statistic, gaiaStatisticsInvalidate, gaiaGetVectorLayersList

Note

you are responsible to destroy (before or after) any allocated Geometry returned by gaiaGetLayerExtent().
The geometry arg is optional when the table simply has a single Geometry Column, and can be NULL in this case.
When the mode arg is set to FALSE (default) then the returned infos will be simply retrieved from the staticized statistic tables (faster, but could be inaccurate).
If the mode arg is set to TRUE a preliminary attempt to update the statistic tables will be always performed (probably slower, but surely accurate).
If the named Layer doesn't exist, or if it's completely empty (not containing any valid Geometry) NULL will be returned.

gaiaGetRTreeFullExtent()

SPATIALITE_DECLARE gaiaGeomCollPtr gaiaGetRTreeFullExtent	(	sqlite3 *	db_handle,
		const char *	db_prefix,
		const char *	name,
		int	srid
	)

Will attempt to retrieve the Full Extent from an R*Tree (SpatiaLite)

Parameters

db_handle	handle to the current SQLite connection
prefix	schema prefix identifying the DB containing the R*Tree "main" always identifies the main DB (primary, not Attached).
name	the name of the R*Tree table
srid	the intended SRID for the R*Tree

See also

gaiaGetGpkgRTreeFullExtent

Returns

a Rectangle Geometry corresponding to the Full Extent,
NULL on failure.

gaiaGetVectorLayersList()

SPATIALITE_DECLARE gaiaVectorLayersListPtr gaiaGetVectorLayersList	(	sqlite3 *	handle,
		const char *	table,
		const char *	geometry,
		int	mode
	)

Queries the Metadata tables supporting Vector Layers.

Parameters

handle	SQLite handle to current DB connection.
table	VectorLayer Table (or View, or VirtualShape).
geometry	Geometry Column name.
mode	one of GAIA_VECTORS_LIST_OPTIMISTIC or GAIA_VECTORS_LIST_PESSIMISTIC.

Returns

the pointer to the newly created VectorLayersList object: NULL on failure

See also

gaiaFreeVectorLayersList, update_layer_statistics, gaiaStatisticsInvalidate, gaiaGetLayerExtent, gaiaGetVectorLayersList

Note

you are responsible to destroy (before or after) any allocated VectorLayersList returned by gaiaGetVectorLayersList().
If the table arg is NULL all VectorLayers defined within the DB will be reported (and in this case all AttributeField Infos will be always suppressed); otherwise only a single Layer will be reported (if existing).
By defining the geometry arg (not NULL) you can further restrict the returned report.
When the mode arg is set to GAIA_VECTORS_LIST_OPTIMISTIC (default) then the returned infos will be simply retrieved from the staticized statistic tables (faster, but could be inaccurate).
If the mode arg is set to GAIA_VECTORS_LIST_PESSIMISTIC a preliminary attempt to update the statistic tables will be always performed (probably slower, but surely accurate).

Examples

demo5.c.

gaiaRenameColumn()

SPATIALITE_DECLARE int gaiaRenameColumn	(	sqlite3 *	sqlite,
		const char *	prefix,
		const char *	table,
		const char *	old_name,
		const char *	new_name,
		char **	error_message
	)

Renames a Table's Column.

Parameters

sqlite	handle to current DB connection
prefix	schema prefix identifying the target DB "main" always identifies the main DB (primary, not Attached).
table	name of the table containing the column to be renamed (always expected to be in the MAIN database).
old_name	current name of the column to be renamed
new_name	new column name to be set
error_message	will point to a diagnostic error message in case of failure, otherwise NULL

Note

this function will corretly rename a Geometry Column being properly registered within the Metadata tables.
all triggers, Spatial Index and alike will be correctly recovered.
an eventual diagnostic message pointed by error_message must be freed by calling sqlite3_free()

Returns

0 on failure, any other value on success

See also

gaiaDropTable, gaiaRenameTable

Note

SQLite 3.25 (or later) is stricly required.

gaiaRenameTable()

SPATIALITE_DECLARE int gaiaRenameTable	(	sqlite3 *	sqlite,
		const char *	prefix,
		const char *	old_name,
		const char *	new_name,
		char **	error_message
	)

Renames a Table.

Parameters

sqlite	handle to current DB connection
prefix	schema prefix identifying the target DB "main" always identifies the main DB (primary, not Attached).
old_name	current name of the table to be renamed (always expected to be in the MAIN database).
new_name	new table name to be set
error_message	will point to a diagnostic error message in case of failure, otherwise NULL

Note

this function will corretly rename a SpatialTable being properly registered within the Metadata tables.
all triggers, Spatial Index and alike will be correctly recovered.
an eventual diagnostic message pointed by error_message must be freed by calling sqlite3_free()

Returns

0 on failure, any other value on success

See also

gaiaDropTable, gaiaRenameColumn

Note

SQLite 3.25 (or later) is stricly required.

gaiaStatisticsInvalidate()

SPATIALITE_DECLARE int gaiaStatisticsInvalidate	(	sqlite3 *	handle,
		const char *	table,
		const char *	geometry
	)

Immediately and unconditionally invalidates the already existing Statistics.

Parameters

handle	SQLite handle to current DB connection.
table	VectorLayer Table (or View, or VirtualShape).
geometry	Geometry Column name.

Returns

0 on success, any other value on success

See also

update_layer_statistics, gaiaGetLayerExtent, gaiaGetVectorLayersList

Note

if the table arg is NULL all Statistics for any VectorLayer defined within the DB will be invalidated; otherwise only a single Layer will be affectedd (if existing).
By defining the geometry arg (not NULL) you can further restrict your selection.

gaiaUpdateMetaCatalogStatistics()

SPATIALITE_DECLARE int gaiaUpdateMetaCatalogStatistics	(	sqlite3 *	handle,
		const char *	table,
		const char *	column
	)

Updates the "splite_metacatalog_statistics" table.

Parameters

handle	SQLite handle to current DB connection.
table	name of the table to be processed.
column	name of the column to be processed.

Returns

0 (FALSE) on failure, any other value (TRUE) on success

See also

gaiaCreateMetaCatalogTables, gaiaUpdateMetaCatalogStatisticsFromMaster

gaiaUpdateMetaCatalogStatisticsFromMaster()

SPATIALITE_DECLARE int gaiaUpdateMetaCatalogStatisticsFromMaster	(	sqlite3 *	handle,
		const char *	master_table,
		const char *	table_name,
		const char *	column_name
	)

Updates the "splite_metacatalog_statistics" table (using a Master Table).

Parameters

handle	SQLite handle to current DB connection.
master_table	name of the master-table controlling the whole process.
table_name	name of the column into the master-table containing table-names.
column_name	name of the column into the master-table containing column-names.

Returns

0 (FALSE) on failure, any other value (TRUE) on success

See also

gaiaCreateMetaCatalogTables, gaiaUpdateMetaCatalogStatistics

insert_epsg_srid()

SPATIALITE_DECLARE int insert_epsg_srid	(	sqlite3 *	sqlite,
		int	srid
	)

Inserts some inlined EPSG definition into the "spatial_ref_sys" table.

Parameters

sqlite	handle to current DB connection
srid	the SRID value uniquely identifying the required EPSG definition

Returns

0 on failure, any other value on success

is_kml_constant()

SPATIALITE_DECLARE int is_kml_constant	(	sqlite3 *	sqlite,
		char *	table,
		char *	column
	)

Checks if a column is actually defined into the given table.

Parameters

sqlite	handle to current DB connection
table	the table to be checked
column	the column to be checked

Returns

0 on success, any other value on success

Note

internally used to detect if some KML attribute defaults to a constant value

is_tiny_point_enabled()

SPATIALITE_DECLARE int is_tiny_point_enabled

(

const void *

ptr

)

Checks if the BLOB-TinyPoint encoding is enabled or not.

Parameters

ptr	the same memory pointer passed to the corresponding call to spatialite_init_ex() and returned by spatialite_alloc_connection()

Returns

0 (FALSE) if not enabled, any other value (TRUE) if enabled

See also

enable_tiny_point, disable_tiny_point

load_dbf()

SPATIALITE_DECLARE int load_dbf	(	sqlite3 *	sqlite,
		char *	dbf_path,
		char *	table,
		char *	charset,
		int	verbose,
		int *	rows,
		char *	err_msg
	)

Loads an external DBF file into a newly created table.

Parameters

sqlite	handle to current DB connection
dbf_path	pathname of the DBF file to be imported
table	the name of the table to be created
charset	a valid GNU ICONV charset to be used for DBF text strings
verbose	if TRUE a short report is shown on stderr
rows	on completion will contain the total number of actually exported rows
err_msg	on completion will contain an error message (if any)

See also

load_dbf_ex, load_dbf_ex2, load_dbf_ex3

Note

this function simply calls load_dbf_ex by passing an implicit pk_column=NULL argument

Returns

0 on failure, any other value on success

load_dbf_ex()

SPATIALITE_DECLARE int load_dbf_ex	(	sqlite3 *	sqlite,
		char *	dbf_path,
		char *	table,
		char *	pk_column,
		char *	charset,
		int	verbose,
		int *	rows,
		char *	err_msg
	)

Loads an external DBF file into a newly created table.

Parameters

sqlite	handle to current DB connection
dbf_path	pathname of the DBF file to be imported
table	the name of the table to be created
pk_column	name of the Primary Key column; if NULL or mismatching then "PK_UID" will be assumed by default.
charset	a valid GNU ICONV charset to be used for DBF text strings
verbose	if TRUE a short report is shown on stderr
rows	on completion will contain the total number of actually exported rows
err_msg	on completion will contain an error message (if any)

See also

load_dbf, load_dbf_ex2, load_dbf_ex3

Returns

0 on failure, any other value on success

load_dbf_ex2()

SPATIALITE_DECLARE int load_dbf_ex2	(	sqlite3 *	sqlite,
		char *	dbf_path,
		char *	table,
		char *	pk_column,
		char *	charset,
		int	verbose,
		int	text_date,
		int *	rows,
		char *	err_msg
	)

Loads an external DBF file into a newly created table.

Parameters

sqlite	handle to current DB connection
dbf_path	pathname of the DBF file to be imported
table	the name of the table to be created
pk_column	name of the Primary Key column; if NULL or mismatching then "PK_UID" will be assumed by default.
charset	a valid GNU ICONV charset to be used for DBF text strings
verbose	if TRUE a short report is shown on stderr
text_dates	is TRUE all DBF dates will be considered as TEXT
rows	on completion will contain the total number of imported rows
err_msg	on completion will contain an error message (if any)

See also

load_dbf, load_dbf_ex, load_dbf_ex3

Returns

0 on failure, any other value on success

load_dbf_ex3()

SPATIALITE_DECLARE int load_dbf_ex3	(	sqlite3 *	sqlite,
		const char *	dbf_path,
		const char *	table,
		const char *	pk_column,
		const char *	charset,
		int	verbose,
		int	text_date,
		int *	rows,
		int	colname_case,
		char *	err_msg
	)

Loads an external DBF file into a newly created table.

Parameters

sqlite	handle to current DB connection
dbf_path	pathname of the DBF file to be imported
table	the name of the table to be created
pk_column	name of the Primary Key column; if NULL or mismatching then "PK_UID" will be assumed by default.
charset	a valid GNU ICONV charset to be used for DBF text strings
verbose	if TRUE a short report is shown on stderr
text_dates	is TRUE all DBF dates will be considered as TEXT
rows	on completion will contain the total number of imported rows
colname_case	one between GAIA_DBF_COLNAME_LOWERCASE, GAIA_DBF_COLNAME_UPPERCASE or GAIA_DBF_COLNAME_CASE_IGNORE.
err_msg	on completion will contain an error message (if any)

See also

load_dbf, load_dbf_ex, load_dbf_ex2, load_zip_dbf

Returns

0 on failure, any other value on success

load_geojson()

SPATIALITE_DECLARE int load_geojson	(	sqlite3 *	sqlite,
		char *	path,
		char *	table,
		char *	column,
		int	spatial_index,
		int	srid,
		int	colname_case,
		int *	rows,
		char **	error_message
	)

Loads an external GeoJSON file into a newly created table.

Parameters

sqlite	handle to current DB connection
path	pathname of the GeoJSON file to be imported
table	the name of the table to be created
column	the name of the geometry column. If NULL the column will be silently named "geometry".
spatial_index	if TRUE an R*Tree Spatial Index will be created
srid	when positive, the SRID value to be assigned to all Geometries. If 0 or negative SRID=4326 (lon-lat WGS84) will be always assumed accordingly to RFC 7946.
colname_case	one between GAIA_DBF_COLNAME_LOWERCASE, GAIA_DBF_COLNAME_UPPERCASE or GAIA_DBF_COLNAME_CASE_IGNORE.
rows	on completion will contain the total number of imported rows
error_message	will point to a diagnostic error message in case of failure, otherwise NULL

Returns

0 on failure, any other value on success

Note

you are expected to free before or later an eventual error message by calling sqlite3_free()

load_shapefile()

SPATIALITE_DECLARE int load_shapefile	(	sqlite3 *	sqlite,
		char *	shp_path,
		char *	table,
		char *	charset,
		int	srid,
		char *	column,
		int	coerce2d,
		int	compressed,
		int	verbose,
		int	spatial_index,
		int *	rows,
		char *	err_msg
	)

Loads an external Shapefile into a newly created table.

Parameters

sqlite	handle to current DB connection
shp_path	pathname of the Shapefile to be imported (no suffix)
table	the name of the table to be created
charset	a valid GNU ICONV charset to be used for DBF text strings
srid	the SRID to be set for Geometries
column	the name of the geometry column
coerce2d	if TRUE any Geometry will be casted to 2D [XY]
compressed	if TRUE compressed Geometries will be created
verbose	if TRUE a short report is shown on stderr
spatial_index	if TRUE an R*Tree Spatial Index will be created
rows	on completion will contain the total number of imported rows
err_msg	on completion will contain an error message (if any)

Returns

0 on failure, any other value on success

See also

load_shapefile_ex, load_shapefile_ex2, load_shapefile_ex3

Note

this function simply calls load_shapefile_ex by passing implicit gype="AUTO" and pk_column=NULL arguments

load_shapefile_ex()

SPATIALITE_DECLARE int load_shapefile_ex	(	sqlite3 *	sqlite,
		char *	shp_path,
		char *	table,
		char *	charset,
		int	srid,
		char *	geo_column,
		char *	gtype,
		char *	pk_column,
		int	coerce2d,
		int	compressed,
		int	verbose,
		int	spatial_index,
		int *	rows,
		char *	err_msg
	)

Loads an external Shapefile into a newly created table.

Parameters

sqlite	handle to current DB connection
shp_path	pathname of the Shapefile to be imported (no suffix)
table	the name of the table to be created
charset	a valid GNU ICONV charset to be used for DBF text strings
srid	the SRID to be set for Geometries
geo_column	the name of the geometry column
gtype	expected to be one of: "LINESTRING", "LINESTRINGZ", "LINESTRINGM", "LINESTRINGZM", "MULTILINESTRING", "MULTILINESTRINGZ", "MULTILINESTRINGM", "MULTILINESTRINGZM", "POLYGON", "POLYGONZ", "POLYGONM", "POLYGONZM", "MULTIPOLYGON", "MULTIPOLYGONZ", "MULTIPOLYGONM", "MULTIPOLYGONZM" or "AUTO".
pk_column	name of the Primary Key column; if NULL or mismatching then "PK_UID" will be assumed by default.
coerce2d	if TRUE any Geometry will be casted to 2D [XY]
compressed	if TRUE compressed Geometries will be created
verbose	if TRUE a short report is shown on stderr
spatial_index	if TRUE an R*Tree Spatial Index will be created
rows	on completion will contain the total number of imported rows
err_msg	on completion will contain an error message (if any)

Returns

0 on failure, any other value on success

See also

load_shapefile, load_shapefile_ex2, load_shapefile_ex3

Note

the Shapefile format doesn't supports any distinction between LINESTRINGs and MULTILINESTRINGs, or between POLYGONs and MULTIPOLYGONs; as does not allows to clearly distinguish if the M-measure is required.
So a first preliminary scan of the Shapefile is required in order to correctly identify the actual payload (gtype = "AUTO", default case).
By explicitly specifying some expected geometry type this first scan will be skipped at all thus introducing a noticeable performance gain.
Anyway, declaring a mismatching geometry type will surely cause a failure.

load_shapefile_ex2()

SPATIALITE_DECLARE int load_shapefile_ex2	(	sqlite3 *	sqlite,
		char *	shp_path,
		char *	table,
		char *	charset,
		int	srid,
		char *	geo_column,
		char *	gtype,
		char *	pk_column,
		int	coerce2d,
		int	compressed,
		int	verbose,
		int	spatial_index,
		int	text_date,
		int *	rows,
		char *	err_msg
	)

Loads an external Shapefile into a newly created table.

Parameters

sqlite	handle to current DB connection
shp_path	pathname of the Shapefile to be imported (no suffix)
table	the name of the table to be created
charset	a valid GNU ICONV charset to be used for DBF text strings
srid	the SRID to be set for Geometries
geo_column	the name of the geometry column
gtype	expected to be one of: "LINESTRING", "LINESTRINGZ", "LINESTRINGM", "LINESTRINGZM", "MULTILINESTRING", "MULTILINESTRINGZ", "MULTILINESTRINGM", "MULTILINESTRINGZM", "POLYGON", "POLYGONZ", "POLYGONM", "POLYGONZM", "MULTIPOLYGON", "MULTIPOLYGONZ", "MULTIPOLYGONM", "MULTIPOLYGONZM" or "AUTO".
pk_column	name of the Primary Key column; if NULL or mismatching then "PK_UID" will be assumed by default.
coerce2d	if TRUE any Geometry will be casted to 2D [XY]
compressed	if TRUE compressed Geometries will be created
verbose	if TRUE a short report is shown on stderr
spatial_index	if TRUE an R*Tree Spatial Index will be created
text_dates	is TRUE all DBF dates will be considered as TEXT
rows	on completion will contain the total number of imported rows
err_msg	on completion will contain an error message (if any)

Returns

0 on failure, any other value on success

See also

load_shapefile, load_shapefile_ex, load_shapefile_ex3

Note

the Shapefile format doesn't supports any distinction between LINESTRINGs and MULTILINESTRINGs, or between POLYGONs and MULTIPOLYGONs; as does not allows to clearly distinguish if the M-measure is required.
So a first preliminary scan of the Shapefile is required in order to correctly identify the actual payload (gtype = "AUTO", default case).
By explicitly specifying some expected geometry type this first scan will be skipped at all thus introducing a noticeable performance gain.
Anyway, declaring a mismatching geometry type will surely cause a failure.

load_shapefile_ex3()

SPATIALITE_DECLARE int load_shapefile_ex3	(	sqlite3 *	sqlite,
		const char *	shp_path,
		const char *	table,
		const char *	charset,
		int	srid,
		const char *	geo_column,
		const char *	gtype,
		const char *	pk_column,
		int	coerce2d,
		int	compressed,
		int	verbose,
		int	spatial_index,
		int	text_date,
		int *	rows,
		int	colname_case,
		char *	err_msg
	)

Loads an external Shapefile into a newly created table.

Parameters

sqlite	handle to current DB connection
shp_path	pathname of the Shapefile to be imported (no suffix)
table	the name of the table to be created
charset	a valid GNU ICONV charset to be used for DBF text strings
srid	the SRID to be set for Geometries
geo_column	the name of the geometry column
gtype	expected to be one of: "LINESTRING", "LINESTRINGZ", "LINESTRINGM", "LINESTRINGZM", "MULTILINESTRING", "MULTILINESTRINGZ", "MULTILINESTRINGM", "MULTILINESTRINGZM", "POLYGON", "POLYGONZ", "POLYGONM", "POLYGONZM", "MULTIPOLYGON", "MULTIPOLYGONZ", "MULTIPOLYGONM", "MULTIPOLYGONZM" or "AUTO".
pk_column	name of the Primary Key column; if NULL or mismatching then "PK_UID" will be assumed by default.
coerce2d	if TRUE any Geometry will be casted to 2D [XY]
compressed	if TRUE compressed Geometries will be created
verbose	if TRUE a short report is shown on stderr
spatial_index	if TRUE an R*Tree Spatial Index will be created
text_dates	is TRUE all DBF dates will be considered as TEXT
rows	on completion will contain the total number of imported rows
colname_case	one between GAIA_DBF_COLNAME_LOWERCASE, GAIA_DBF_COLNAME_UPPERCASE or GAIA_DBF_COLNAME_CASE_IGNORE.
err_msg	on completion will contain an error message (if any)

Returns

0 on failure, any other value on success

See also

load_shapefile, load_shapefile_ex, load_shapefile_ex2, load_zip_shapefile

Note

the Shapefile format doesn't supports any distinction between LINESTRINGs and MULTILINESTRINGs, or between POLYGONs and MULTIPOLYGONs; as does not allows to clearly distinguish if the M-measure is required.
So a first preliminary scan of the Shapefile is required in order to correctly identify the actual payload (gtype = "AUTO", default case).
By explicitly specifying some expected geometry type this first scan will be skipped at all thus introducing a noticeable performance gain.
Anyway, declaring a mismatching geometry type will surely cause a failure.

load_XL()

SPATIALITE_DECLARE int load_XL	(	sqlite3 *	sqlite,
		const char *	path,
		const char *	table,
		unsigned int	worksheetIndex,
		int	first_titles,
		unsigned int *	rows,
		char *	err_msg
	)

Loads an external spreadsheet (.xls) file into a newly created table.

Parameters

sqlite	handle to current DB connection
path	pathname of the spreadsheet file to be imported
table	the name of the table to be created
worksheetIndex	the index identifying the worksheet to be imported
first_titles	if TRUE the first line is assumed to contain column names
rows	on completion will contain the total number of actually exported rows
err_msg	on completion will contain an error message (if any)

Returns

0 on failure, any other value on success

load_zip_dbf()

SPATIALITE_DECLARE int load_zip_dbf	(	sqlite3 *	sqlite,
		const char *	zip_file,
		const char *	dbf_path,
		const char *	table,
		const char *	pk_column,
		const char *	charset,
		int	verbose,
		int	text_date,
		int *	rows,
		int	colname_case,
		char *	err_msg
	)

Loads an external DBF file (from Zipfile) into a newly created table.

Parameters

sqlite	handle to current DB connection
zip_path	pathname of the Zipfile
shp_path	pseudo-pathname of the Shapefile to be imported (no suffix)
sqlite	handle to current DB connection
zip_path	pathname of the Zipfile
filenamepseudo-pathname	of the DBF file to be imported (including the '.dbf' suffix)
table	the name of the table to be created
pk_column	name of the Primary Key column; if NULL or mismatching then "PK_UID" will be assumed by default.
charset	a valid GNU ICONV charset to be used for DBF text strings
verbose	if TRUE a short report is shown on stderr
text_dates	is TRUE all DBF dates will be considered as TEXT
rows	on completion will contain the total number of imported rows
colname_case	one between GAIA_DBF_COLNAME_LOWERCASE, GAIA_DBF_COLNAME_UPPERCASE or GAIA_DBF_COLNAME_CASE_IGNORE.
err_msg	on completion will contain an error message (if any)

See also

load_dbf_ex3

Returns

0 on failure, any other value on success

load_zip_shapefile()

SPATIALITE_DECLARE int load_zip_shapefile	(	sqlite3 *	sqlite,
		const char *	zip_path,
		const char *	shp_path,
		const char *	table,
		const char *	charset,
		int	srid,
		const char *	geo_column,
		const char *	gtype,
		const char *	pk_column,
		int	coerce2d,
		int	compressed,
		int	verbose,
		int	spatial_index,
		int	text_date,
		int *	rows,
		int	colname_case,
		char *	err_msg
	)

Loads an external Shapefile (from Zipfile) into a newly created table.

Parameters

sqlite	handle to current DB connection
zip_path	pathname of the Zipfile
shp_path	pseudo-pathname of the Shapefile to be imported (no suffix)
table	the name of the table to be created
charset	a valid GNU ICONV charset to be used for DBF text strings
srid	the SRID to be set for Geometries
geo_column	the name of the geometry column
gtype	expected to be one of: "LINESTRING", "LINESTRINGZ", "LINESTRINGM", "LINESTRINGZM", "MULTILINESTRING", "MULTILINESTRINGZ", "MULTILINESTRINGM", "MULTILINESTRINGZM", "POLYGON", "POLYGONZ", "POLYGONM", "POLYGONZM", "MULTIPOLYGON", "MULTIPOLYGONZ", "MULTIPOLYGONM", "MULTIPOLYGONZM" or "AUTO".
pk_column	name of the Primary Key column; if NULL or mismatching then "PK_UID" will be assumed by default.
coerce2d	if TRUE any Geometry will be casted to 2D [XY]
compressed	if TRUE compressed Geometries will be created
verbose	if TRUE a short report is shown on stderr
spatial_index	if TRUE an R*Tree Spatial Index will be created
text_dates	is TRUE all DBF dates will be considered as TEXT
rows	on completion will contain the total number of imported rows
colname_case	one between GAIA_DBF_COLNAME_LOWERCASE, GAIA_DBF_COLNAME_UPPERCASE or GAIA_DBF_COLNAME_CASE_IGNORE.
err_msg	on completion will contain an error message (if any)

Returns

0 on failure, any other value on success

See also

load_shapefile_ex3

Note

the Shapefile format doesn't supports any distinction between LINESTRINGs and MULTILINESTRINGs, or between POLYGONs and MULTIPOLYGONs; as does not allows to clearly distinguish if the M-measure is required.
So a first preliminary scan of the Shapefile is required in order to correctly identify the actual payload (gtype = "AUTO", default case).
By explicitly specifying some expected geometry type this first scan will be skipped at all thus introducing a noticeable performance gain.
Anyway, declaring a mismatching geometry type will surely cause a failure.

math_llabs()

SPATIALITE_DECLARE sqlite3_int64 math_llabs

(

sqlite3_int64

value

)

A portable replacement for C99 llabs()

Parameters

value

a 64 bit integer value

Returns

the corresponding absolute value

math_round()

SPATIALITE_DECLARE double math_round

(

double

value

)

A portable replacement for C99 round()

Parameters

value

a double value

Returns

the nearest integeral value

remove_duplicated_rows()

SPATIALITE_DECLARE void remove_duplicated_rows	(	sqlite3 *	sqlite,
		char *	table
	)

Remove duplicated rows from a table.

Parameters

sqlite	handle to current DB connection
table	name of the table to be cleaned

See also

check_duplicated_rows, remove_duplicated_rows_ex

Note

when two (or more) duplicated rows exist, only the first occurrence will be preserved, then deleting any further occurrence.

remove_duplicated_rows_ex()

SPATIALITE_DECLARE void remove_duplicated_rows_ex	(	sqlite3 *	sqlite,
		char *	table,
		int *	removed
	)

Remove duplicated rows from a table.

Parameters

sqlite	handle to current DB connection
table	name of the table to be cleaned
removed	on successful completion will contain the total count of removed duplicate rows

See also

check_duplicated_rows, remove_duplicated_rows_ex2

Note

when two (or more) duplicated rows exist, only the first occurrence will be preserved, then deleting any further occurrence.

remove_duplicated_rows_ex2()

SPATIALITE_DECLARE void remove_duplicated_rows_ex2	(	sqlite3 *	sqlite,
		char *	table,
		int *	removed,
		int	transaction
	)

Remove duplicated rows from a table.

Parameters

sqlite	handle to current DB connection
table	name of the table to be cleaned
removed	on successful completion will contain the total count of removed duplicate rows
transaction	boolena; if set to TRUE will internally handle a SQL Transaction

See also

check_duplicated_rows, remove_duplicated_rows

Note

when two (or more) duplicated rows exist, only the first occurrence will be preserved, then deleting any further occurrence.

sanitize_all_geometry_columns()

SPATIALITE_DECLARE int sanitize_all_geometry_columns	(	sqlite3 *	sqlite,
		const char *	tmp_prefix,
		const char *	output_dir,
		int *	not_repaired,
		char **	err_msg
	)

Sanitizes all Geometry Columns making all invalid geometries to be valid.

Parameters

sqlite	handle to current DB connection
tmp_prefix	name-prefix for temporary tables
output_dir	pathname of the directory to be created for report-files
not_repaired	if this variable is not NULL on successful completion will contain the total count of repair failures (i.e. Geometries beyond possible repair)
err_msg	if this variable is not NULL and the return status is ZERO (failure), an appropriate error message will be returned

See also

sanitize_all_geometry_columns_r, check_geometry_column, check_all_geometry_columns, sanitize_geometry_column

Note

this function will attempt to make valid all invalid geometries found within all Geometry Columns (vector layers); a temporary table is required so to support each input table.
if the process has full success the temprary table will be deleted; otherwise it will be preserved for further inspection. a HTML report will be produced as well.
an eventual error message returned via err_msg requires to be deallocated by invoking free()
not reentrant and thread unsafe.

Returns

0 on failure, any other value on success

sanitize_all_geometry_columns_r()

SPATIALITE_DECLARE int sanitize_all_geometry_columns_r	(	const void *	p_cache,
		sqlite3 *	sqlite,
		const char *	tmp_prefix,
		const char *	output_dir,
		int *	not_repaired,
		char **	err_msg
	)

Sanitizes all Geometry Columns making all invalid geometries to be valid.

Parameters

p_cache	a memory pointer returned by spatialite_alloc_connection()
sqlite	handle to current DB connection
tmp_prefix	name-prefix for temporary tables
output_dir	pathname of the directory to be created for report-files
not_repaired	if this variable is not NULL on successful completion will contain the total count of repair failures (i.e. Geometries beyond possible repair)
err_msg	if this variable is not NULL and the return status is ZERO (failure), an appropriate error message will be returned

See also

sanitize_all_geometry_columns, check_geometry_column, check_all_geometry_columns, sanitize_geometry_column

Note

this function will attempt to make valid all invalid geometries found within all Geometry Columns (vector layers); a temporary table is required so to support each input table.
if the process has full success the temprary table will be deleted; otherwise it will be preserved for further inspection. a HTML report will be produced as well.
an eventual error message returned via err_msg requires to be deallocated by invoking free()
reentrant and thread-safe.

Returns

0 on failure, any other value on success

sanitize_geometry_column()

SPATIALITE_DECLARE int sanitize_geometry_column	(	sqlite3 *	sqlite,
		const char *	table,
		const char *	geom,
		const char *	tmp_table,
		const char *	report_path,
		int *	n_invalids,
		int *	n_repaired,
		int *	n_discarded,
		int *	n_failures,
		char **	err_msg
	)

Sanitizes a Geometry Column making all invalid geometries to be valid.

Parameters

sqlite	handle to current DB connection
table	name of the table
geometry	name of the column to be checked
tmp_table	name of the temporary table
report_path	pathname of the report-file
n_invalids	if this variable is not NULL on successful completion will contain the total number of invalid Geometries found into the sanitize table
n_repaired	if this variable is not NULL on successful completion will contain the total number of repaired Geometries
n_discarded	if this variable is not NULL on successful completion will contain the total number of repaired Geometries (by discarding fragments)
n_failures	if this variable is not NULL on successful completion will contain the total number of repair failures (i.e. Geometries beyond possible repair)
err_msg	if this variable is not NULL and the return status is ZERO (failure), an appropriate error message will be returned

See also

sanitize_geometry_column_r, check_geometry_column, check_all_geometry_columns, sanitize_all_geometry_columns

Note

this function will attempt to make valid all invalid geometries found within a Geometry Column (layer); a temporary table is required.
if the process has full success the temprary table will be deleted; otherwise it will be preserved for further inspection. a HTML report will be produced as well.
an eventual error message returned via err_msg requires to be deallocated by invoking free()
not reentrant and thread unsafe.

Returns

0 on failure, any other value on success

sanitize_geometry_column_r()

SPATIALITE_DECLARE int sanitize_geometry_column_r	(	const void *	p_cache,
		sqlite3 *	sqlite,
		const char *	table,
		const char *	geom,
		const char *	tmp_table,
		const char *	report_path,
		int *	n_invalids,
		int *	n_repaired,
		int *	n_discarded,
		int *	n_failures,
		char **	err_msg
	)

Sanitizes a Geometry Column making all invalid geometries to be valid.

Parameters

p_cache	a memory pointer returned by spatialite_alloc_connection()
sqlite	handle to current DB connection
table	name of the table
geometry	name of the column to be checked
tmp_table	name of the temporary table
report_path	pathname of the report-file
n_invalids	if this variable is not NULL on successful completion will contain the total number of invalid Geometries found into the sanitize table
n_repaired	if this variable is not NULL on successful completion will contain the total number of repaired Geometries
n_discarded	if this variable is not NULL on successful completion will contain the total number of repaired Geometries (by discarding fragments)
n_failures	if this variable is not NULL on successful completion will contain the total number of repair failures (i.e. Geometries beyond possible repair)
err_msg	if this variable is not NULL and the return status is ZERO (failure), an appropriate error message will be returned

See also

sanitize_geometry_column, check_geometry_column, check_all_geometry_columns, sanitize_all_geometry_columns

Note

this function will attempt to make valid all invalid geometries found within a Geometry Column (layer); a temporary table is required.
if the process has full success the temprary table will be deleted; otherwise it will be preserved for further inspection. a HTML report will be produced as well.
an eventual error message returned via err_msg requires to be deallocated by invoking free()
reentrant and thread-safe.

Returns

0 on failure, any other value on success

spatial_ref_sys_init()

SPATIALITE_DECLARE int spatial_ref_sys_init	(	sqlite3 *	sqlite,
		int	verbose
	)

Inserts the inlined EPSG dataset into the "spatial_ref_sys" table.

Parameters

sqlite	handle to current DB connection
verbose	if TRUE a short report is shown on stderr

Returns

0 on failure, any other value on success

See also

spatial_ref_sys_init2

Note

this function is internally invoked by the SQL function InitSpatialMetadata(), and is not usually intended for direct use. This functions is now deprecated, and will simply call spatial_ref_sys_init2(sqlite, GAIA_EPSG_ANY, verbose).

spatial_ref_sys_init2()

SPATIALITE_DECLARE int spatial_ref_sys_init2	(	sqlite3 *	sqlite,
		int	mode,
		int	verbose
	)

Inserts the inlined EPSG dataset into the "spatial_ref_sys" table.

Parameters

sqlite	handle to current DB connection
mode	can be one of GAIA_EPSG_ANY, GAIA_EPSG_NONE or GAIA_EPSG_WGS84_ONLY
verbose	if TRUE a short report is shown on stderr

Returns

0 on failure, any other value on success

Note

this function is internally invoked by the SQL function InitSpatialMetadata(), and is not usually intended for direct use.

spatialite_alloc_connection()

SPATIALITE_DECLARE void* spatialite_alloc_connection

(

void

)

Initializes the internal memory block supporting each connection.

See also

spatialite_init_ex, spatialite_cleanup_ex

Examples

demo1.c, demo2.c, demo3.c, demo4.c, and demo5.c.

spatialite_cleanup()

SPATIALITE_DECLARE void spatialite_cleanup

(

void

)

Cleanup a SpatiaLite connection.

This function is now DEPRECATED; use spatialite_cleanup_ex() for all new development.

This function performs general cleanup, essentially undoing the effect of spatialite_init().

See also

spatialite_init

spatialite_cleanup_ex()

SPATIALITE_DECLARE void spatialite_cleanup_ex

(

const void *

ptr

)

Cleanup a SpatiaLite connection.

This function performs general cleanup, essentially undoing the effect of spatialite_init_ex().

Parameters

ptr	the same memory pointer passed to the corresponding call to spatialite_init_ex() and returned by spatialite_alloc_connection()

See also

spatialite_init_ex, spatialite_alloc_connection

Examples

demo1.c, demo2.c, demo3.c, demo4.c, and demo5.c.

spatialite_finalize_topologies()

SPATIALITE_DECLARE void spatialite_finalize_topologies

(

const void *

ptr

)

Partially Cleaning-up a SpatiaLite connection.

This function will destroy all TopoGeo and TopoNet objects from within a local cache.

Parameters

ptr	the same memory pointer passed to the corresponding call to spatialite_init_ex() and returned by spatialite_alloc_connection()

See also

spatialite_init_ex, spatialite_alloc_connection

spatialite_init()

SPATIALITE_DECLARE void spatialite_init

(

int

verbose

)

Initializes a SpatiaLite connection.

This function is now DEPRECATED because is not reentrant (not thread safe); use spatialite_init_ex() for all new development.

Parameters

verbose

if TRUE a short start-up message is shown on stderr

See also

spatialite_cleanup, spatialite_init_ex

Note

You absolutely must invoke this function before attempting to perform any other SpatiaLite's call.

spatialite_init_ex()

SPATIALITE_DECLARE void spatialite_init_ex	(	sqlite3 *	db_handle,
		const void *	ptr,
		int	verbose
	)

Initializes a SpatiaLite connection.

Parameters

db_handle	handle to the current SQLite connection
ptr	a memory pointer returned by spatialite_alloc_connection()
verbose	if TRUE a short start-up message is shown on stderr

See also

spatialite_alloc_connection, spatialite_cleanup_ex, spatialite_init

Note

You absolutely must invoke this function before attempting to perform any other SpatiaLite's call.

Examples

demo1.c, demo2.c, demo3.c, demo4.c, and demo5.c.

spatialite_init_geos()

SPATIALITE_DECLARE void spatialite_init_geos

(

void

)

Initializes the GEOS library.

Note

You are never supposed to invoke this function (internally handled).

spatialite_initialize()

SPATIALITE_DECLARE void spatialite_initialize

(

void

)

Initializes the library.

Note

you are always expected to explicitly call this function before attempting to call any SpatiaLite own function.

spatialite_set_silent_mode()

SPATIALITE_DECLARE void spatialite_set_silent_mode

(

const void *

ptr

)

Disables reporting GEOS/RTTOPO error and warnings on stderr.

Parameters

ptr	a memory pointer returned by spatialite_alloc_connection()

See also

spatialite_init_ex, spatialite_cleanup_ex, spatialite_set_verbose_mode

spatialite_set_verbode_mode()

SPATIALITE_DECLARE void spatialite_set_verbode_mode

(

const void *

ptr

)

Enables reporting GEOS/RTTOPO error and warnings on stderr.

Parameters

ptr	a memory pointer returned by spatialite_alloc_connection()

See also

spatialite_init_ex, spatialite_cleanup_ex, spatialite_set_silent_mode

spatialite_shutdown()

SPATIALITE_DECLARE void spatialite_shutdown

(

void

)

Finalizes the library.

Note

you are always expected to explicitly call this function immediately before exiting the main application.
This function will free any memory allocation and will release any system resource internally used by the library.

Examples

demo1.c, demo2.c, demo3.c, demo4.c, and demo5.c.

spatialite_target_cpu()

SPATIALITE_DECLARE const char* spatialite_target_cpu

(

void

)

Return the target CPU name.

Returns

the target CPU string.

spatialite_version()

SPATIALITE_DECLARE const char* spatialite_version

(

void

)

Return the current library version.

Returns

the version string.

Examples

demo1.c, demo3.c, demo4.c, and demo5.c.

srid_get_axis()

SPATIALITE_DECLARE char* srid_get_axis	(	sqlite3 *	sqlite,
		int	srid,
		char	axis,
		char	mode
	)

checks a SRID definition from the "spatial_ref_sys" table then returning an Axis definition

Parameters

sqlite	handle to current DB connection
srid	the SRID value uniquely identifying the required EPSG definition
axis	should be one of SPLITE_AXIS_1 or SPLITE_AXIS_2
mode	should be one of SPLITE_AXIS_NAME or SPLITE_AXIS_ORIENTATION

Returns

the reqested name on succes, NULL on failure

Note

you are responsible for freeing the returned name.

srid_get_datum()

SPATIALITE_DECLARE char* srid_get_datum	(	sqlite3 *	sqlite,
		int	srid
	)

checks a SRID definition from the "spatial_ref_sys" table then returning the corresponding Datum name

Parameters

sqlite	handle to current DB connection
srid	the SRID value uniquely identifying the required EPSG definition

Returns

the Datum name on succes, NULL on failure

Note

you are responsible for freeing the returned name.

srid_get_prime_meridian()

SPATIALITE_DECLARE char* srid_get_prime_meridian	(	sqlite3 *	sqlite,
		int	srid
	)

checks a SRID definition from the "spatial_ref_sys" table then returning the corresponding Prime Meridian name

Parameters

sqlite	handle to current DB connection
srid	the SRID value uniquely identifying the required EPSG definition

Returns

the Prime Meridian name on succes, NULL on failure

Note

you are responsible for freeing the returned name.

srid_get_projection()

SPATIALITE_DECLARE char* srid_get_projection	(	sqlite3 *	sqlite,
		int	srid
	)

checks a SRID definition from the "spatial_ref_sys" table then returning the corresponding Projection name

Parameters

sqlite	handle to current DB connection
srid	the SRID value uniquely identifying the required EPSG definition

Returns

the Projection name on succes, NULL on failure

Note

you are responsible for freeing the returned name.

srid_get_spheroid()

SPATIALITE_DECLARE char* srid_get_spheroid	(	sqlite3 *	sqlite,
		int	srid
	)

checks a SRID definition from the "spatial_ref_sys" table then returning the corresponding Spheroid name

Parameters

sqlite	handle to current DB connection
srid	the SRID value uniquely identifying the required EPSG definition

Returns

the Spheroid name on succes, NULL on failure

Note

you are responsible for freeing the returned name.

srid_get_unit()

SPATIALITE_DECLARE char* srid_get_unit	(	sqlite3 *	sqlite,
		int	srid
	)

checks a SRID definition from the "spatial_ref_sys" table then returning the corresponding Unit name

Parameters

sqlite	handle to current DB connection
srid	the SRID value uniquely identifying the required EPSG definition

Returns

the Unit name on succes, NULL on failure

Note

you are responsible for freeing the returned name.

srid_has_flipped_axes()

SPATIALITE_DECLARE int srid_has_flipped_axes	(	sqlite3 *	sqlite,
		int	srid,
		int *	flipped
	)

checks a SRID definition from the "spatial_ref_sys" table determining if the axes order is X-Y or Y-X

Parameters

sqlite	handle to current DB connection
srid	the SRID value uniquely identifying the required EPSG definition
flipped	on successful completion will contain 0 (FALSE) if axes order is X-Y, any other value (TRUE) if axes order is Y-X.

Returns

0 on failure, any other value on success

srid_is_geographic()

SPATIALITE_DECLARE int srid_is_geographic	(	sqlite3 *	sqlite,
		int	srid,
		int *	geographic
	)

checks a SRID definition from the "spatial_ref_sys" table determining if it is of the geographic type

Parameters

sqlite	handle to current DB connection
srid	the SRID value uniquely identifying the required EPSG definition
geographic	on successful completion will contain TRUE or FALSE

Returns

0 on failure, any other value on success

srid_is_projected()

SPATIALITE_DECLARE int srid_is_projected	(	sqlite3 *	sqlite,
		int	srid,
		int *	projected
	)

checks a SRID definition from the "spatial_ref_sys" table determining if it is of the projected type

Parameters

sqlite	handle to current DB connection
srid	the SRID value uniquely identifying the required EPSG definition
projected	on successful completion will contain TRUE or FALSE

Returns

0 on failure, any other value on success

update_layer_statistics()

SPATIALITE_DECLARE int update_layer_statistics	(	sqlite3 *	sqlite,
		const char *	table,
		const char *	column
	)

Updates the LAYER_STATICS metadata table.

Parameters

sqlite	handle to current DB connection
table	name of the table to be processed
column	name of the geometry to be processed

Note

this function will explore the given table/geometry determining the number of rows and the full layer extent; a corresponding table/geometry entry is expected to be already declared in the GEOMETRY_COLUMNS table. These informations will be permanently stored into the LAYER_STATISTICS table; if such table does not yet exists will be implicitly created.

• if table is NULL, any entry found within GEOMETRY_COLUMNS will be processed.
• if table is not NULL and column is NULL, any geometry belonging to the given table will be processed.
• if both table and column are not NULL, then only the given entry will be processed.

See also

gaiaStatisticsInvalidate, gaiaGetLayerExtent, gaiaGetVectorLayersList

Returns

0 on failure, the total count of processed entries on success
