wrapper for DXF Pattern Hatch object More...
#include <gg_dxf.h>

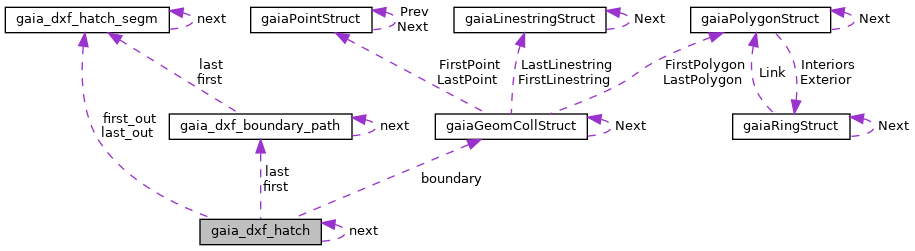

Collaboration diagram for gaia_dxf_hatch:
Data Fields | |
| double | spacing |
| hatch pattern spacing | |
| double | angle |
| hatch line angle | |
| double | base_x |
| hatch line base X | |
| double | base_y |
| hatch line base Y | |
| double | offset_x |
| hatch line offset X | |
| double | offset_y |
| hatch line offset Y | |
| gaiaDxfBoundaryPathPtr | first |
| pointer to first Boundary | |
| gaiaDxfBoundaryPathPtr | last |
| pointer to last Boundary | |
| gaiaGeomCollPtr | boundary |
| pointer to Boundary geometry | |
| gaiaDxfHatchSegmPtr | first_out |
| pointer to first Pattern segment | |
| gaiaDxfHatchSegmPtr | last_out |
| pointer to last Pattern segment | |
| struct gaia_dxf_hatch * | next |
| pointer to next item [linked list] | |
Detailed Description
wrapper for DXF Pattern Hatch object
The documentation for this struct was generated from the following file:
- src/headers/spatialite/gg_dxf.h
